JLU1502

Technical index:

--Mediums to be sealed: strong corrosive media like H2SO4,, HNO3, HCI and organic acid.
--pressure in the sealed chamber ≤ 0.5Mpa.
--Temperature in the sealed Chamber ≤120℃
--Linear Velocity ≤15m/Sec.

Product details:

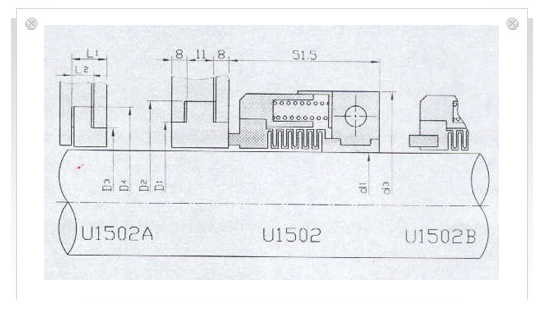

size information

Size	Spec.	d1	d3	D1	D2	D3	D4	L1	L2
JLU1502-25		25	69	47	60	38	48	12	8
JLU1502-30		30	74	52	66	43	53	12	8
JLU1502-35		35	79	57	70	48	58	12	8
JLU1502-40		40	84	62	76	53	63	12	8
JLU1502-45		45	89	67	82	58	68	14	9
JLU1502-50		50	96	72	86	63	73	14	9
JLU1502-55		55	101	78	94	68	78	14	9
JLU1502-60		60	106	86	102	73	83	14	9
JLU1502-65		65	111	92	108	78	88	14	9
