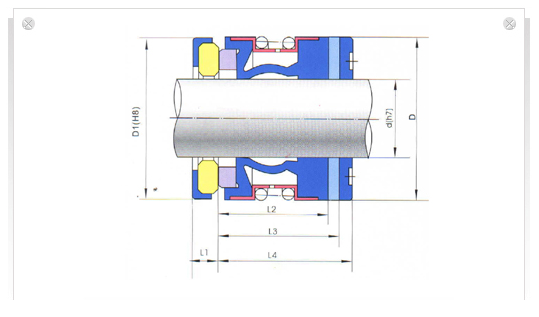

size information
spec | size | d | D | D1 | L1 | L2 | L3 | L4 |
JL210-10 | 10 | 20 | 21 | 5 | 15 | 27.5 | 35 | |
JL210-12 | 12 | 22 | 23 | 6 | 15 | 26.5 | 34 | |
JL210-14 | 14 | 24 | 25 | 6 | 15 | 29 | 34 | |
JL210-15 | 15 | 25 | 26 | 6 | 15 | 29 | 34 | |
JL210-16 | 16 | 26 | 27 | 6 | 15 | 29 | 34 | |
JL210-18 | 18 | 32 | 33 | 6 | 20 | 31.5 | 39 | |
JL210-20 | 20 | 34 | 35 | 6 | 20 | 31.5 | 39 | |
JL210-22 | 22 | 36 | 37 | 6 | 20 | 31.5 | 39 | |
JL210-24 | 24 | 38 | 39 | 6 | 20 | 34 | 44 | |
JL210-25 | 25 | 39 | 40 | 6 | 20 | 34 | 44 | |
JL210-28 | 28 | 42 | 43 | 6 | 26 | 36.5 | 44 | |
JL210-30 | 30 | 44 | 45 | 7 | 26 | 35.5 | 43 | |
JL210-32 | 32 | 46 | 48 | 7 | 26 | 35.5 | 48 | |
JL210-33 | 33 | 47 | 48 | 7 | 26 | 35.5 | 48 | |
JL210-35 | 35 | 49 | 50 | 8 | 26 | 34.5 | 47 | |
JL210-38 | 38 | 54 | 56 | 8 | 30 | 37 | 47 | |
JL210-40 | 40 | 56 | 58 | 8 | 30 | 37 | 47 | |
JL210-43 | 43 | 59 | 61 | 8 | 30 | 37 | 52 | |
JL210-45 | 45 | 61 | 63 | 8 | 30 | 37 | 52 | |
JL210-48 | 48 | 64 | 66 | 10 | 30 | 35 | 50 | |
JL210-50 | 50 | 66 | 70 | 10 | 30 | 37.5 | 50 | |
JL210-53 | 53 | 69 | 73 | 10 | 30 | 3.5 | 60 | |
JL210-55 | 55 | 71 | 75 | 10 | 30 | 37.5 | 60 | |
JL210-58 | 58 | 78 | 78 | 10 | 33 | 42.5 | 60 | |
JL210-60 | 60 | 80 | 80 | 12 | 33 | 40.5 | 58 | |
JL210-63 | 63 | 83 | 83 | 12 | 33 | 40.5 | 58 | |
JL210-65 | 65 | 85 | 85 | 12 | 33 | 40.5 | 68 | |
JL210-68 | 68 | 88 | 90 | 12 | 33 | 40.5 | 68 | |
JL210-70 | 70 | 90 | 92 | 12 | 33 | 48 | 68 | |
JL210-75 | 75 | 94 | 97 | 12 | 40 | 48 | 68 | |
JL210-80 | 80 | 104 | 105 | 14 | 40 | 47.5 | 77.5 | |
JL210-85 | 85 | 109 | 110 | 14 | 40 | 47.5 | 77.5 | |
JL210-90 | 90 | 114 | 115 | 14 | 40 | 52.5 | 77.5 | |
JL210-95 | 95 | 119 | 120 | 14 | 40 | 52.5 | 77.5 | |
JL210-100 | 100 | 124 | 125 | 14 | 40 | 52.5 | 77.5 | |
spec | size | d | D | D1 | L1 |
JL210-0.375 | 0.375 | 0.787 | 0.875 | 0.591 | |
JL210-0.5 | 0.5 | 0.945 | 1 | 0.591 | |
JL210-0.625 | 0.625 | 1.024 | 1.25 | 0.591 | |
JL210-0.75 | 0.75 | 1.26 | 1.375 | 0.787 | |
JL210-.875 | 0.875 | 1.417 | 1.5 | 0.787 | |
JL210-1 | 1 | 1.535 | 1.625 | 0.787 | |
JL210-1.125 | 1.125 | 1.654 | 1.75 | 1.024 | |
JL210-1.25 | 1.25 | 1.811 | 1.875 | 1.024 | |
JL210-1375 | 1.375 | 1.929 | 2 | 1.024 | |
JL210-1.5 | 1.5 | 2.126 | 2.125 | 1.181 | |
JL210-1.625 | 1.625 | 2.205 | 2.375 | 1.181 | |
JL210-1.75 | 1.75 | 2.402 | 2.5 | 1.181 | |
JL210-1.875 | 1.875 | 2.52 | 2.625 | 1.181 | |
JL210-2 | 2 | 2.598 | 2.75 | 1.181 | |
JL210-2.125 | 2.125 | 2.717 | 3 | 1.181 | |
JL210-2.25 | 2.25 | 3.031 | 3.125 | 1.299 | |
JL210-2.375 | 2.375 | 3.15 | 3.25 | 1.299 | |
JL210-2.5 | 2.5 | 3.268 | 3.375 | 1.299 | |
JL210-2.265 | 2.265 | 3.465 | 3.375 | 1.299 | |
JL210-2.75 | 2.75 | 3.504 | 3.5 | 1.299 | |
JL210-2.875 | 2.875 | 3.78 | 3.75 | 1.299 | |
JL210-3 | 3 | 3.898 | 3.875 | 1.575 | |
JL210-3.125 | 3.125 | 4.055 | 4 | 1.575 | |
JL210-3.25 | 3.25 | 4.094 | 4.125 | 1.575 | |
JL210-3.375 | 3.375 | 4.252 | 4.25 | 1.575 | |
JL210-3.5 | 3.5 | 4.409 | 4.375 | 1.575 | |
JL210-3.625 | 3.625 | 4.488 | 4.5 | 1.575 | |
JL210-3.75 | 3.75 | 4.646 | 4.625 | 1.575 | |
JL210-3.875 | 3.875 | 4.803 | 4.75 | 1.575 | |
JL210-4 | 4 | 4.882 | 4.875 | 1.575 | |
