JIALIANG MECHANICAL SEALS & SIGNS MANUFACTURING COMPANY

JL104&110

Technical index:

--Mostly Use: averagecorrosion mediums, such as Water, oil, weak acid, weak alkali, etc.
--Temperature in the sealed chamber: -20℃~200℃
--Pressure in the sealed chamber:
--104Model: <=1.0Mpa --110Model: <=0.8~2.9Mpa
--Linear Velocity: <=15m/Sec

Product details:

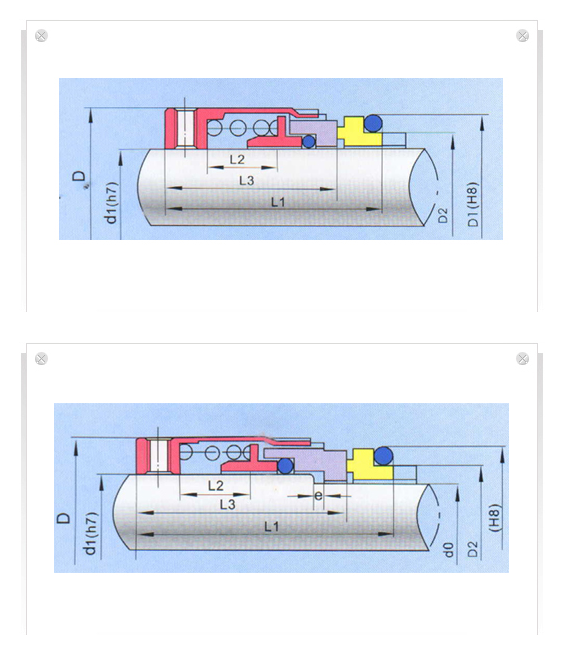

size information

spec.	size	d1	D	D1	D2	L1	L2	L3
JL104-16		16	33	33	25	53	8	37
JL104-18		18	35	36	28	56	11	40
JL104-20		20	37	40	30	59	11	40
JL104-22		22	39	42	32	62	14	43
JL104-25		25	42	45	35	62	14	43
JL104-28		28	45	48	38	63	15	44
JL104-30		30	52	50	40	68	15	49
JL104-35		35	57	55	45	70	17	51
JL104-40		40	62	60	50	73	20	54
JL104-45		45	67	65	55	79	25	60
JL104-50		50	72	70	60	82	28	63
JL104-55		55	77	75	65	84	30	65
JL104-60		60	82	80	70	84	30	65
JL104-65		65	92	90	80	96	35	74
JL104-70		70	97	97	85	101	37	76
JL104-75		75	102	102	90	101	37	76
JL104-80		80	107	107	95	106	42	81
JL104-85		85	112	112	100	107	42	82
JL104-90		90	117	117	105	108	43	83
JL104-95		95	122	122	110	108	43	83
JL104-100		100	127	127	115	108	43	83
JL104-110		110	141	142	130	132	60	105
JL104-120		120	151	152	140	132	60	105

	d1	d0	D	D1	L1	L2	L3	e	D2
JL110-16	16	11	33	33	61	8	45	2	25
JL110-18	18	13	35	36	64	11	48	2	28
JL110-20	20	5	37	40	67	11	48	2	30
JL110-22	22	17	39	42	70	14	51	2	32
JL110-25	25	20	42	45	70	14	51	2	35
JL110-28	28	22	45	48	71	15	52	2	38
JL110-30	30	25	52	50	77	15	58	3	40
JL110-35	35	28	57	55	80	17	61	3	45
JL110-40	40	34	62	60	83	20	64	3	50
JL110-45	45	38	67	65	89	25	70	3	55
JL110-50	50	44	72	70	92	28	73	3	60
JL110-55	55	48	77	75	94	30	75	3	65
JL110-60	60	52	82	80	94	30	75	3	70
JL110-65	65	58	92	90	103	35	81	3	80
JL110-70	70	62	97	97	111	37	86	3	85
JL110-75	75	66	102	102	111	37	86	3	90
JL110-80	80	72	107	107	116	42	91	3	95
JL110-85	85	76	112	112	117	42	92	3	100
JL110-90	90	82	117	117	118	43	93	3	105
JL110-95	95	85	122	122	118	43	93	3	110
JL110-100	100	90	127	127	118	43	93	3	115
JL110-110	110	100	141	142	144	60	117	3	130
JL110-120	120	110	151	152	144	80	117	3	140
