JIALIANG MECHANICAL SEALS & SIGNS MANUFACTURING COMPANY

JL101

Technical index:

--Major for suction pumps and ship pumps etc.
--Temperature in the sealed chamber:-20℃~100℃
--Pressure in the sealed chamber: <=0.8Mpa
--Linear velocity: <=5m/Sec

Product details:

$_}8B2`1~0]EV@`F{DV(X@X8.png$

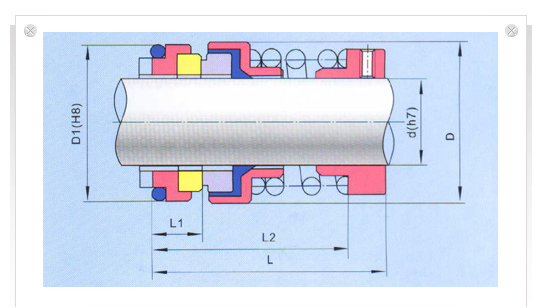

size information

spec. size	d	D	D1	L	L1	L2
JL101-16	16	33	33	42.5	12	32.5
JL101-20	20	40	40	47.5	13	37.5
JL101-25	25	45	45	51.5	13	41.5
JL101-28	28	48	48	53.5	13	43.5
JL101-30	30	51	50	59.5	14	46.5
JL101-35	35	56	55	63.5	14	50.5
JL101-40	40	62	60	68	14	55
JL101-45	45	67	65	74	14	61
JL101-50	50	72	70	78	14	65
JL101-55	55	77	75	80	14	67
JL101-60	60	82	80	80	14	67
JL101-65	65	87	85	94	14	81
