JL57

Technical index:

Pressure in the sealed chamber: =< 2.5 Mpa Temperature in the sealed chamber: -40°C~220°C Linea velocity: =< 20 m/Sec

Product details:

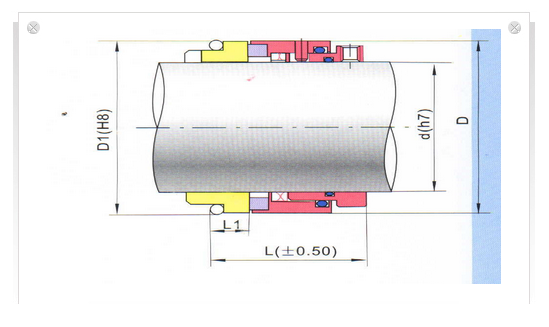

size information

Spec.	size	d	D	D1	L	L1
JL57-18		18	32	33	37.5	9
JL57-20		20	34	35	37.5	9
JL57-22		22	36	37	37.5	9
JL57-24		24	38	39	40	9.5
JL57-25		25	39	40	40	9.5
JL57-28		28	42	43	42.5	10.5
JL57-30		30	44	45	42.5	10.5
JL57-32		32	46	48	42.5	10.5
JL57-33		33	47	48	42.5	10.5
JL57-35		35	49	50	42.5	10.5
JL57-38		38	54	56	45	11.5
JL57-40		40	56	58	45	11.5
JL57-43		43	59	61	45	11.5
JL57-45		45	61	63	45	11.5
JL57-48		48	64	66	45	11.5
JL57-50		50	66	70	47.5	13
JL57-53		53	69	73	47.5	13
JL57-55		55	71	75	47.5	13
JL57-58		58	78	78	52.5	13.5
JL57-60		60	80	80	52.5	13.5
JL57-63		63	83	83	52.5	13.5
JL57-65		65	85	85	52.5	13.5
JL57-68		68	88	90	52.5	13.5
JL57-70		70	90	92	60	15
JL57-75		75	99	97	60	15
JL57-80		80	104	105	60	15
JL57-85		85	109	110	60	16
JL57-90		90	114	115	65	16
JL57-95		95	119	120	65	16
JL57-100		100	124	125	65	16
