JL47

Technical index:
-- Mostly Use: average corrosion mediums, such as water, oil, weak acid, weak alkali, etc
-- Pressure in the sealed chamber: =< 0.5 Mpa
-- Temperature in the sealed chamber: -20°C~100°C
-- Linea velocity: =< 16 m/Sec

Product details:

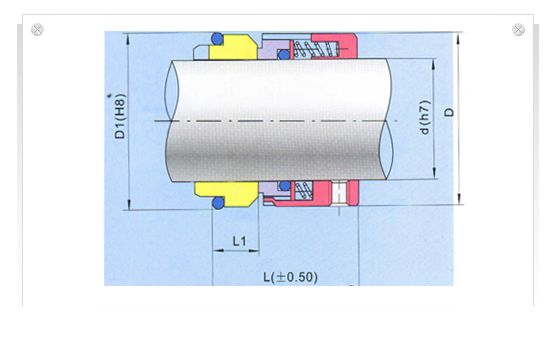

Spec.

Size

d

D

L

L1

JL47-14

14

25

35

10

JL47-16

16

27

35

10

JL47-18

18

33

37.5

11.5

JL47-20

20

35

37.5

11.5

JL47-22

22

37

37.5

11.5

JL47-24

24

39

40

11.5

JL47-25

25

40

40

11.5

JL47-28

28

43

42.5

11.5

JL47-30

30

45

42.5

11.5

JL47-32

32

47

42.5

11.5

JL47-33

33

48

42.5

11.5

JL47-35

35

50

42.5

11.5

JL47-38

38

55

45

14

JL47-40

40

57

45

14

JL47-43

43

60

45

14

JL47-45

45

62

45

14

JL47-48

48

65

45

14

JL47-50

50

67

47.5

15

JL47-53

53

70

47.5

15

JL47-55

55

72

47.5

15

JL47-58

58

79

52.5

15

JL47-60

60

81

52.5

15

JL47-63

63

84

52.5

15

JL47-65

65

86

52.5

15

JL47-68

68

89

52.5

18

JL47-70

70

91

60

18

JL47-75

75

99

60

18

JL47-80

80

104

60

18.2

JL47-85

85

109

60

18.2

JL47-90

90

114

65

18.2

JL47-95

95

119

65

17.2

JL47-100

100

124

65

17.2
