JL46

Technical index:

--Temperature in the sealed chamber:-40℃~220℃
--Pressure in the sealed chamber: =<1.6Mpa
--Linear velocity: =<15m/sec

Product details:

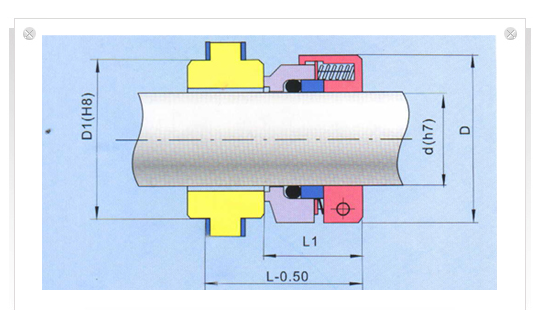

size information

Spec.	Size	d	D	D1	L	L1
JL46-18		18	44	36.5	51.5	38
JL46-20		20	46	39.7	51.5	38
JL46-22		22	48	39.7	51.5	38
JL46-24		24	50	42.8	51.5	38
JL46-25		25	52	42.8	51.5	38
JL46-28		28	55	50.8	58.5	38
JL46-30		30	58	54	58.5	38
JL46-32		32	60	54	58.5	38
JL46-33		33	60	57.15	58.5	38
JL46-35		35	62	57.15	58.5	38
JL46-38		38	65	63.5	58.5	38
JL46-40		40	68	66.7	58.5	38
JL46-43		43	70	69.8	58.5	38
JL46-45		45	72	69.8	62.5	42
JL46-48		48	75	79.4	67.5	42
JL46-50		50	78	79.4	67.5	42
JL46-53		53	80	82.5	67.5	42
JL46-55		55	80	85.7	67.5	42
JL46-58		58	83	88.9	67.5	42
JL46-60		60	86	88.9	67.5	42
JL46-63		63	90	92.1	67.5	42
JL46-65		65	93	95.2	67.5	42
JL46-68		68	98	98.4	67.5	42
JL46-70		70	98	98.4	67.5	42
JL46-75		75	105	103.2	67.5	42
JL46-80		80	109	114.3	67.5	42
JL46-85		85	114	120.6	67.5	42
JL46-90		90	120	127	67.5	42
JL46-95		95	125	127	67.5	42
JL46-100		100	130	133.3	67.5	42
